TactileGlove - Hand Pressure and Force Measurement
The PPS TactileGloves are tactile pressure sensor gloves with embedded sensing elements throughout the palm and fingers, allowing for natural and accurate testing of pressures applied to and exerted by the hand. Nearly any hand operation can be measured accurately through the 65 individual highly sensitive sensing elements within each glove.
Our TactileGloves are wireless and battery powered. This is the only glove sensor on the market that both allows for full range of motion and creates an organic testing environment. High-resolution pressure sensing and mapping enables you to research hand movements when performing various tasks, and analyze comfort, and ergonomics through visual feedback of hand interactions.
Sensor Glove Features:
시중에 나와있는 유일한 장갑형태의 손 센서로 자연스러운 테스트 환경을 보장.
User friendly, comfortable to wear and no adhesives or wires to get in your way
고분해능의 민감한 센서로 최저 압력 (0.1oz / 3 g)도 감지.
Meant to handle the real world. It's wireless and battery powered.
Delivered in pairs (Left + Right). Available glove size: small, medium, and large. See: sizing chart
제품 설명
The TactileGlove provides a sharp improvement in sensor measurement involving human hand and finger movements. Both simple and complex hand operations can be measured accurately and dynamically through multiple high-resolution small sensor arrays. Sixty-five sensor elements across the hand, fingers, and palm, embedded within a wireless glove allows for reliable and repeatable pressure distribution measurement.
High-resolution pressure sensing and hand mapping has versatile applications. It enables you to research and develop human movements, comfort, and ergonomics through visual feedback of hand interactions. The accompanying Chameleon Software captures and records live data to provide both numeric and image representation of pressures on the hand.
응용 사례
손을 이용해 제품을 사용하는 사용자의 착용성을 이해하고 제품의 효율성을 증대시킬수 있습니다. 가위로 금속을 절단하고 와이어를 벗겨 내고 미세한 조립 작업을 수행할 때 소요되는 손아귀의 힘과 접촉 압력을 측정해 보세요. 귀사의 작업환경에서 너무 많은 손아귀 힘이 소요되는 지점을 파악하여 잠재적인 부상위험을 줄일 수 있는 해답을 찾으십시오.
제조 작업 안전성 및 작업자 평가:
부상 예방을 위한 작업의 활동 이해
Measure & visualize human grip force required to use power tools
Analyze grip force required for fine motor activities such as using dental tools
Determine if a tool modification reduces effort required
Quantify hand strength for return-to-work assessments
제품의 인체공학적 설계:
사람들이 자연스럽게 사용하는 힘의 정량(수치)화
Determine upper and lower limits of forces generated by the hand
인적 요인 및 인체 공학적 설계에 대한 도구 사용 작용 성과 수량화
설계 변경에 대응한 제품의 "느낌" 상관 관계 분석
경쟁사의 제품과 손의 상호 작용을 보다 쉽게 이해
절단기 사용시 파지력
파지력의 정량화
EXAMPLES
WHITE PAPER - Interpreting TactileGlove Data for Practical Use Cases - Published 2024
WHITE PAPER - Quantifying Hand Ergonomics With The Tactile Glove - Published 2021
RESEARCH ARTICLE - Investigating Gripping Force During Lifting Tasks Using a Pressure Sensing Glove System - 2월 2023 - Science Direct Applied Ergonomics - Download
RESEARCH ARTICLE - Identification of Adaptive Driving Style Preference through Implicit Inputs in SAE L2 Vehicles - 11월 2022 - Honda Research Institute USA, Inc - Download
RESEARCH ARTICLE (in Japanese) - Measurement and Assessment of Touch Skills during Dementia Care Movements Using Tactile Gloves - 2020 - Kyushu University

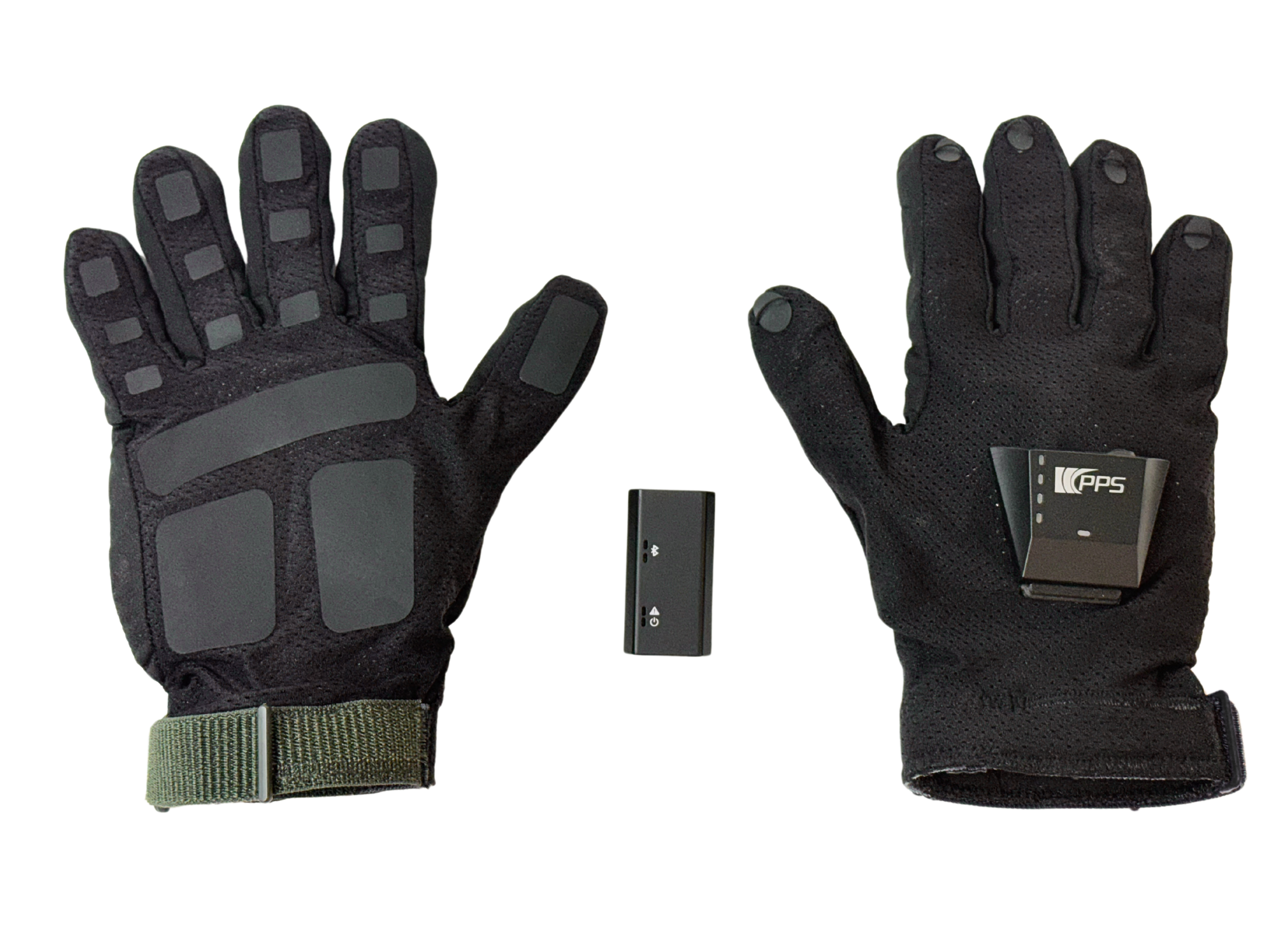

구성품(Tactile Glove System Components)
센서 1쌍(TactileGlove Pair)
BLE 모듈 및 하우징
BLE USB 동글
USB 충전 케이블
Inside the tactile gloves
Sixty-five (65) sensing elements embedded within the glove enable accurate pressure mapping across the most important areas of the hand.
GLOVE Sensor Specifications
| 감지 소자(Sensing Elements) | 65 |
|---|---|
| 압력 범위(Full Scale Range) | 80 psi (55 N/cm2) |
| 사용 최대값(Maximum Force) | Thumb & Finger tips - 70 N Pinky tips - 28 N |
| 두께 | ~ 2.6 mm |
| 신호대 잡음(Signal-to-Noise (SNR)) | > 500:1 |
| 비 반복성(Gain Non-Repeatability) | <3% |
| 출력 선형성(Linearity) | > 98% |
| 최소 감도(Minimum Sensitivity) | 0.04 N |
전자사양(Electronic Specifications)
| 스캔 속도(Scan Rate) | 25 - 40 Hz |
|---|---|
| PC와 연결 방법(Interconnection) | Wireless BlueTooth Low Energy (BLE) - minimum 5 m range |
| Battery Life | > 2 hours |
| 사용 온도(Operating Temperature) | 0 - 50° C |
자주 묻는 질문
1. TactileGlove가 감지할 수 있는 최소 힘 감도와 질량은 얼마인가?
The minimum force that each individual force sensing glove fingertip element (38 mm²) can detect is 0.04 N.
2. TactileGlove는 방수가 되나요?
No, the TactileGlove is not waterproof. However, a custom skin can be added at extra cost.
3. TactileGlove가 다양한 손 크기와 모양을 수용 할 수 있도록 늘어나나요?
The four glove sizes are carefully designed to cover natural hand sizes across a broad spectrum. Please choose the correct size based on your hand dimensions.
4. TactileGlove는 압력이나 힘을 측정합니까?
The TactileGlove is calibrated in units of pressure (i.e., psi or N/cm²). Force values are calculated using the known area of each sensor element.
5. TactileGlove가 빠른 충격 부하을 감지 할 수 있습니까?
충격 어플리케이션에 TactileGlove를 사용하는 것을 추천하지 않습니다.
6. How often does the TactileGlove require calibration?
The capacitive based sensing modality of PPS sensors results in an extremely stable sensor with superior reliability and repeatability. With proper use and care, the TactileGlove should retain its calibration for years.
